Place of Origin:
China
Brand Name:
KAAE
Certification:
ISO certificate
Model Number:
KY-CDM-16
Contact Us

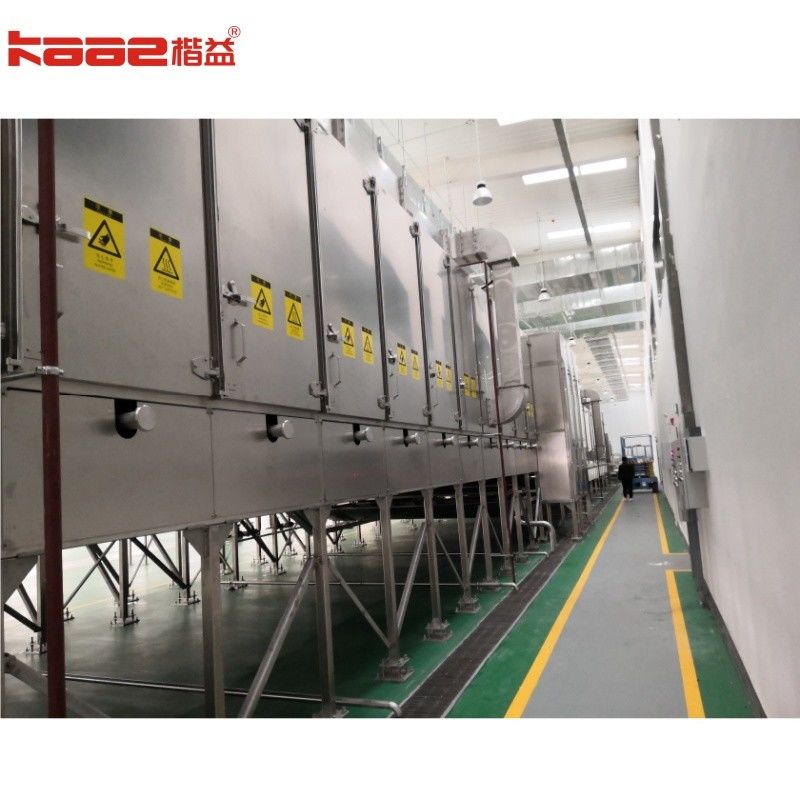

Stainless Steel Heater Automatic Drying Machine Conveyor Dryer Machine
Description:
1.Temperature Range:RT-250℃, adjustable, constant temperature, independent temperature control of each section;
2. Intelligent temperature controller, PID automatic calculation, LED display, with SCR power silicon controlled, can accurately control the precision of temperature;
3. The interior is made of high quality thermal insulation materials with good thermal insulation effect;
4. Internal hot air circulation, baking objects evenly heated;
5. Fast heating time, stable and accurate temperature;
6. Double over temperature protection, safe and reliable electrical control;
7. Domestic first-class heat insulation and heat breaking technology, remarkable sealing effect;
8. The shell temperature of the body is low, which has little influence on indoor ambient temperature;
9. Environmental protection,energy-saving, strong safety performance.
Suitable for:
Multi-layers Belt dryer is used for mass production of continuous drying equipment for the drying of the sheet, strip pellet material with better ventilation property, especially for the materials cannot bear high temperature such as dehydrated vegetables, Chinese herbal pieces of high moisture content. Belt driers have many advantages, such as fast drying rate, high evaporation strength, good product quality; cake type of paste materials, wet granulation can also be dried.
Structure:
Single-pass conveyor dryer
Accommodating the widest range of materials, the single-pass dryer provides gentle product handling, energy efficiency
and long-term reliability, the single-pass dryer moves the product through multiple temperature zones on a coneyor
bed. Gentle product handling is ensured, as there are no turnovers or drops during drying.
Multi-pass conveyor dryer
Customers with limited floor space can double or triple their capacity with a multi-pass dryer. Zoned temerature control and
alternating airflow provide unmatched moisture uniformity. Multiple-pass dryers feature conveyor beds positioned one above
the other in order to maximize capacity in the least amount of floor space.
Multi-stage conveyor dryer
High levels of process flexibility and product quality are possible with the multi-stage dryer. Bed speed, product loading, zone
temperature and airflow can all vary per stage to develop on retain desired characteristics, Multiple-stage dryers offer multiple
speeds and temperatrue/airflow conditions, assuring the product will be processed within the optimum time and temperature
range.
Principle of drying process:
Model | Output capacity(kg/hr) | No. of Modules | Length(meters) |
KaiyiFeed-p2 | 4,000 | 2 | 7.0 |
KaiyiFeed-P3 | 6,000 | 3 | 9.1 |
KaiyiFeed-P4 | 8,000 | 4 | 11.2 |
KaiyiFeed-P5 | 10,000 | 5 | 13.4 |
KaiyiFeed-P6 | 12,000 | 6 | 15.5 |
Manufacturing capacity:
i
Exhibition:
Our factory:
FAQ:
1. What's the materils?
Answer: Stainless steel
2. How long is your gurantee time?
Answer: One year after comissioning.
3.How is the installation?
Answer: When the machine arrives at the your workshop, we send 1-2 engineers to install the machine and teach the workers how to use.
There be a operate mannual and Equipment maintenance manual.
4.I want to do more tastes. It is ok?
Answer: We will supply a basic formula.
You can adjust and find the best formula to meet your target market's taste.
5.How is the payment?
Answer: 40% TT as downpayment, 60% TT or L/C before shippment.
Before shippment,welcome to inspect the machine.
