SS304 Automatic Fruit Sorting Machine Washing Waxing And Grading Machine
  • SS304 Automatic Fruit Sorting Machine Washing Waxing And Grading Machine
  • SS304 Automatic Fruit Sorting Machine Washing Waxing And Grading Machine
  • SS304 Automatic Fruit Sorting Machine Washing Waxing And Grading Machine
  • SS304 Automatic Fruit Sorting Machine Washing Waxing And Grading Machine
  • SS304 Automatic Fruit Sorting Machine Washing Waxing And Grading Machine
  • SS304 Automatic Fruit Sorting Machine Washing Waxing And Grading Machine
  • SS304 Automatic Fruit Sorting Machine Washing Waxing And Grading Machine

SS304 Automatic Fruit Sorting Machine Washing Waxing And Grading Machine

Place of Origin Jiangsu,China
Brand Name KAAE
Model Number KY-AS-22
Product Details
Material:
Stainless Steel 304
Core Components:
PLC, Motor, Gear
Type:
Production Line
Outets:
4+1
Application:
Fruit And Vegetable
Brand:
KAAE
Suitable For:
Vegetable Fruit Sorting
Highlight:

ss 304 automatic fruit sorting machine

,

washing waxing automatic fruit sorting machine

,

ss 304 automatic fruit sorting and grading machine

Payment & Shipping Terms
Minimum Order Quantity
1 Set
Packaging Details
Standard Wooden Case
Delivery Time
3 Months
Payment Terms
T/T, L/C, Western Union, D/A, D/P
Supply Ability
200 Sets/Month
Product Description

SS304 Automatic Fruit Sorting Machine Washing Waxing And Grading Machine



Product Application


Automatic fruit sorting system as a modern fruit sorting technology, including on-line, cleaning, coating, drying, sorting,

packing andother water operaions procedures, the sorting is both the key and the fastest growing in recent years, and t

he most used part of moderntechnology. This sorting line uses computer image processing to replace the artificial sorting,

regardless of the shape of the fruit, size, color and external defects according to user requirements at the same time automatic

sorting, greatly improving the work efficiency.



For cleaning and waxing fruits, such as apple, citrus, navel orange, honey pomelo etc. to make the fruit appearance look bright, and improve the fruit price for sale. At the same time, after waxing, a layer of wax membrane will be coated on the fruit to keep the fruit away from bacteria and elongate the fruit storage time.



Waxing Part

a. Power: 0.75kw, infinite speed regulating reducer.
b. Size: 4500X1000X1800mm
c. Structure: brush, rinsing outlet, timer, wax spraying
d. The rotating brushes are used to clean the fruit after washing, and rinsing will be done at the sixth brush to clean out the attached materials.
e. During the conveying process, the brushes will clean out the water on the fruit, and they are also used to brighten the fruit. Four cooling fans are installed in the middle of the brushes for drying the fruits

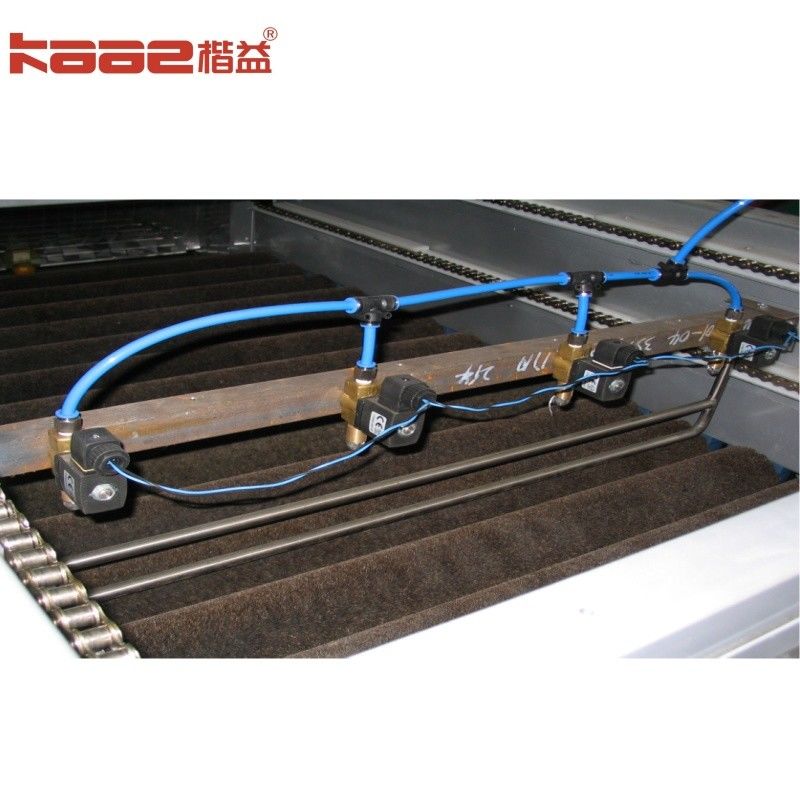

f. During the second half of conveyance, timer is used to control electromagnetic wax spraying outlet, where edible wax is sprayed. The interval time and wax spraying time can be set freely. After spraying, the rotated brushes will make the wax sprayed homogeneously spread on the fruit.



Drying Part

a. Power: 0.75KW,infinite speed regulating reducer.
b. Size: 4000*1300*1950mm
c.Heated by natural gas burner and intelligent temperature controller is installed. The temperature control can be set to be automatic and manually edited.
d. The temperature in the drying tunnel is from low to high. And the wind in the tunnel is circularly blown. Centrifugal blower is employed to make the inside air to be convected.
e. Place the waxed fruit in the drying box, and let the surface water evaporated. The drying process could improve the brightness of the fruit.



Grading Part

a. Power: 1.5KW
b. Size: 10000X1100X1200mm
c. Speed: 20000-21000pcs/hour
d. Electronic controlling system: Siemens elements text display, CPU, Weighing module, weighing sensor.
e. Grade: 9 grades,9 compartments
f. Operating system: English/Chinese Interface



Key attributes

Applicable Industries Food & Beverage Factory, Farms, Restaurant
Showroom Location None
Video outgoing-inspection Provided
Warranty of core components 1 Year
Condition New
Type Sorting machine


SS304 Automatic Fruit Sorting Machine Washing Waxing And Grading Machine 0
SS304 Automatic Fruit Sorting Machine Washing Waxing And Grading Machine 1SS304 Automatic Fruit Sorting Machine Washing Waxing And Grading Machine 2SS304 Automatic Fruit Sorting Machine Washing Waxing And Grading Machine 3SS304 Automatic Fruit Sorting Machine Washing Waxing And Grading Machine 4SS304 Automatic Fruit Sorting Machine Washing Waxing And Grading Machine 5SS304 Automatic Fruit Sorting Machine Washing Waxing And Grading Machine 6

SS304 Automatic Fruit Sorting Machine Washing Waxing And Grading Machine 7

SS304 Automatic Fruit Sorting Machine Washing Waxing And Grading Machine 8

FAQ


1. Q: What’s your mininum order quantity?

A: One set.



2. Q: Do you accept customization?

A: Yes, and it’s one of our advantages.



3. Q: How long is your delivery time?

A:Once we reach an agreement and the payment is received, the production process starts immediately, basically the lead time is 15 days.



4. Q: How about the packing for machine? Would it be easily damaged during transportation?

A: We use standard export wooden case for package which is strong enough for transportation.



5. Q: How about your after-sale service?

A: First, if you don’t know how to install or use the machine, our staff will provide detailed description and video to help you, we can also get online to have instant communication.

Second, if you have continual purchase needs, you can send people to our company and we can provide operation training.

Third, all of our products have one year warranty. If the core accessories went wrong and can’t be fixed, you can exchange for a new one.

Last, if the problem is extremely serious, we can send engineers to your company to help.
